About this item

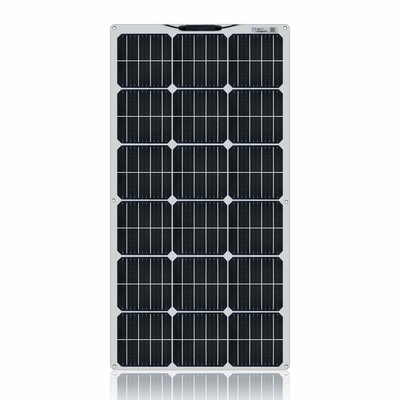

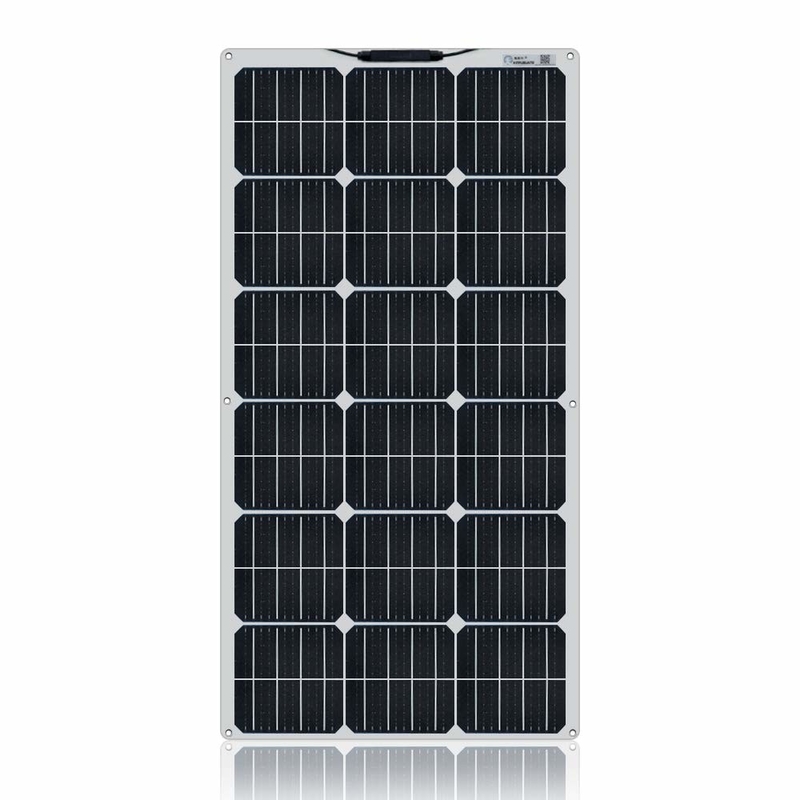

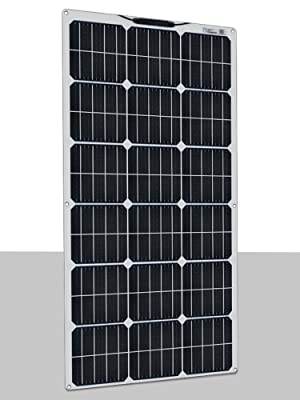

• *High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 22% conversion rate, 100w solar panels are smaller, lighter and more portable

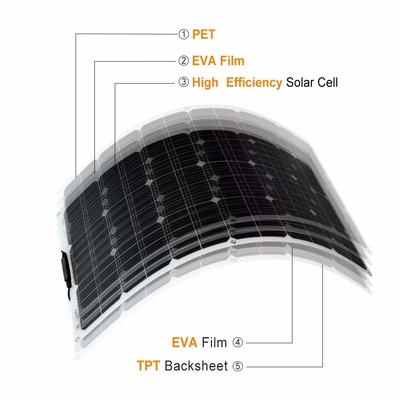

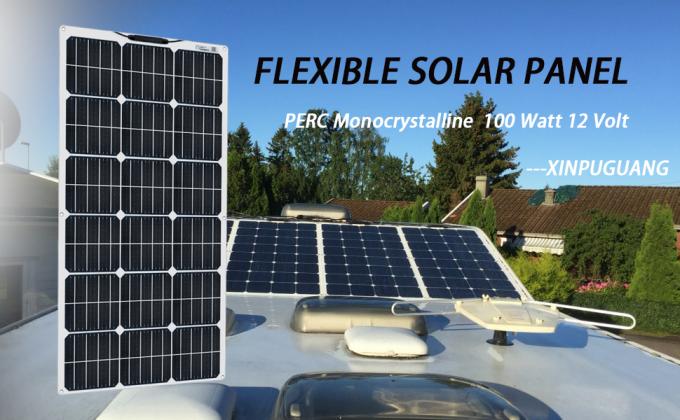

• *Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
• *Thin & Lightweight:100W solar panel weighs approximately 4lb,Thickness is 0.1in, weighs 70% less than conventional solar panels, making transportation and installation a breeze.

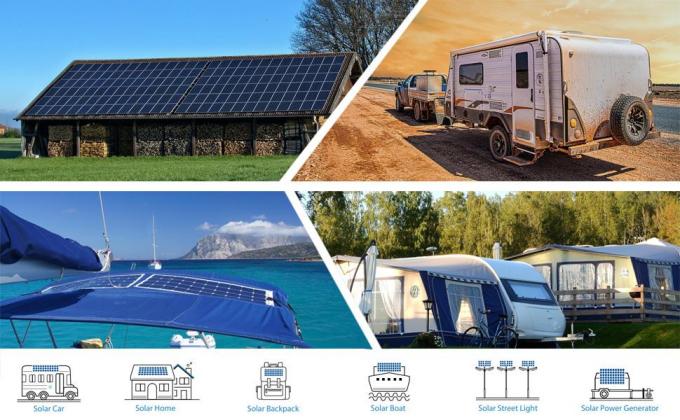

• *Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas

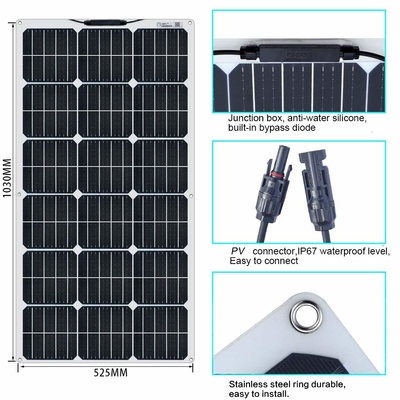

• *Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape.
•

•








  Maximum power(Pmax) 100W

  Open circuit voltage(Voc) 21.6V

  Short circuit current(Isc) 6.11 A

  Maximum power voltage(Vmp) 18V

  Maximum power current(Imp) 5.55A

  Temperature range -40℃～+80℃

  Maximum system voltage :700V DC

  Weight 1.85kg(4 lb)

  Size 37.6x20.86x0.11 in




  Tip

  1. The solar system kit connection is divided into parallel connection or serial connection. The controller must first connect the battery and then connect the solar panels.

  2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

  3. The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

  4. When the cable is connected to each component, the connection should be stable and there should be no looseness.

  5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

  6. When the power rati

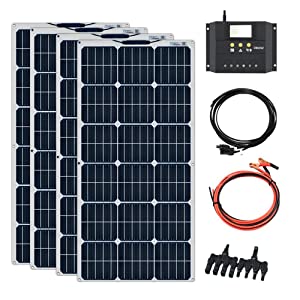

  Packing list

  1. 4pcs solar panel

  2. 40A charger controller

  3.1 sets cable with PV connector

  4.1 sets cable with Crocodile clip line

  5.1 sets 4 in 1 connector

  The solar panel kits are delivered separately from different warehouses. If you only receive part of the products, Please inform us.



• ng of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.
